Description
Note: The Atom 3S has ended production.

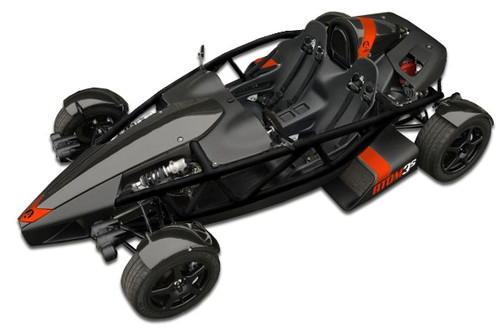

The Ariel Atom 3S is the most aggressive model of the Ariel Atom 3 line up. The Atom 3S has been packaged to bring together some of the best new options with the long standing proven platform of the Atom 3. The result is mind numbing performance. The 3S will accelerate from 0-60 in less than 2.8 seconds and will hit the 1/4 mile is 10.7 seconds. With a a fully intercooled turbo charged Honda 2.4L engine the Atom 3S puts down 365hp and 310ft/lbs of torque with a major focus on performance and reliability. The cooling radiators for the turbo are neatly packaged in aerodynamic twin side pots which are unique to the Atom 3S in North America.
POWER - 365hp @ 7,700rpm Torque 310ft/lbs @ 4,400rpm
Engine - Honda 2.4L i-VTEC I4
Borg Warner EFR 7163 Turbo Charger
Aluminum Block and Cylinder Head
Displacement 2354cc
Bore & Stroke - 87mm x 99mm
TRANSMISSION
6 Speed Syncro-mesh transmission w/ Limited Slip differential & upgraded clutch
- Optional close ratio standard 6 speed
- Optional Sadev Sequential Paddle Shift
TRACTION CONTROL
Bespoke cockpit adjustable (5 position) traction control system
INSTRUMENTS
LCD digital display with speed, tachometer, water temperature, fuel level, odometer, shift lights, gear position
SUSPENSION
Double Unequal length fabricated wishbones
Outboard adjustable rod ends
Lightweight fabricated uprights
Adjustable suspension push rods
Aluminum bell cranks w/needle roller bearings
JRi custom adjustable dampers w/ 2 piece coil spring
BRAKES
Alcon 4 piston caliper w/2-piece Hat & Disc
Tilton aluminum racing pedal box with twin master cylinder
WHEELS / TIRES
Front 15x7 Rear 16x8
Front: 205/50/15 Rear: 245/45/16
STEERING
Rack and Pinion cast alloy steering rack
Adjustable inboard joint and outboard rod ends
290mm suede covered steering wheel
FUEL SYSTEM
Indirect multi-port grouped fuel injection
Continuous flow Marwal 3.5 bar electric fuel pump
Twin Fuel Filters
10 Gallon fuel tank
ELECTRICAL
Electric coil over ignition
Hondata engine management system
Tatcham 2 Stirling Transponder immobilizer system
COOLING
Front Mounted fabricated aluminum radiator
Side Mounted aluminum radiators (intercoolers)
INTAKE
Sealed intake snorkel with K&N air filter element
EXHAUST
Custom fabricated stainless steel exhaust system
CHASSIS
Bronze welded 2.25", 1.5", and 1" diameter crew/DOM steel tube
Aluminum bulkheads
Powdercoated finish
WIND SCREEN
Custom full laminated safety glass
